Rescroft Limited - OutStanding InSeating
Designers and Manufacturers of Passenger Vehicle Seating
Ambulance - Police - Security - Community - Passenger Transport Vehicles - Wheelchair Accessible Vehicles - Minibus Seating

Company background
Rescroft was established in 1976 in a small workshop in Redditch by current Managing Director Alan Restall and his father, Eric Restall. From the beginning the firm designed and produced quality seating for vehicles and concentrated on manufacturing the whole product from tube bending to seat trimming. In 1993 the company launched the UK's first commercially viable M2 category minibus seat range, 'Defender'. The seats are fitted with lap and diagonal belts and fully comply with current EU legislation for seat belt anchorages. The essential need to ensure compliant seat fitting has involved Rescroft engineers in many seat installations leading, in 2001, to the company's own Embus floor system. Designed by Rescroft and fitted by trained bodybuilders, the system is certified for compliance by both parties. Through continuous research and development Rescroft has a wide range of quality products supplied to Europe and extending to other countries conscious of the need to reach high standards of occupant safety in passenger vehicles. The company enjoys a sound financial position and employs approximately 100 people in two factories in Redditch. The Directors are proud of the company's success over the years and, in particular, the support it receives from its employees and suppliers.

Operations Design, Development, Testing
Dedicated design department. - Technical department in regular contact with international type-approval authorities - Tool and jig-making department - Seat belt anchorage test-rig for vehicles, seats
and components - Ongoing involvement in industry research - initiatives for enhanced passenger safety

Manufacture
Complete product manufacture over two production sites - Press shop, tube bending and welding section - Foam fabricating section - Trim section, covers production and assembly sections - Independent inspection and despatch section

Quality
ISO 9001 2000 Quality accreditation - Departmental inspection procedure - Random sample testing - Product labelling system for traceability - Dedicated to constant quality improvement

News / Press
October/2006 - CTA press release
October/2006 - Prototype belt escutcheon announced
October/2006 - Winga (stage 2 prototype) announced
September/2006 - IAA press release
June/2006 - Ambex press release
June/2006 - Test rig press release
June/2006 - Prototype Swivel/Fold seat announced
[ ARCHIVE » ]
May/2006 - ACTIFRESH' Ambla MRSA information
May/2006 - 'Defender III 'SWIVEL' released
May/2006 - Defender III Tip-up 'ACCENT' released
April/2006 - Redesigned 'UPLIFT' released Links
Handi-Safety - Denmark »
HOLDSWORTH Moquettes »
INTERFACE Fabrics »
WARDLE STOREYS Ambla » Vehicle Seats:

Nevis
Description This high back seat complements, aesthetically and technically, Rescroft’s Defender range. The same, modern look is enhanced by the higher backrest which creates an even more comfortable product. Nevis offers the highest level of passenger safety and, in its various forms, is compliant to M1, M2 or M3 standards. For M2 and M3 applications, the seat is available as single, double and treble units: for M1 applications, as singles and doubles. For maximum comfort, the belt exits at shoulder level, from the front of the seat, whilst the extra height eliminates the need for separate headrests. An ABS back is a standard feature of this highspecification product. Features • Minimised seat pitch measurement
• Compliant on Embus floor system details »
• ABS back
• Compliant on various quick-release fittings
• Variable leg centres and a choice of leg rake
• Compliant to Community Directive 76/115/EEC (as amended) for category M1, M2 and M3 applications
• Standard lap/diagonal, inertia reel belt fully integrated
• Textured paint finish
• Choice of belt type
• Optional flexible seat belt buckle
• Optional twin-belt, retractable harness system
• Optional ISOfix connection details » Accessories • Armrests
• Quick-release fittings
• Rear grab-handle
• Map nets Trim
To match original material in most vehicles. Vinyls and moquettes also available. Bases
All seats are supplied with legs. Braced bases are available for use with quick-release fittings. Dimensions (for guidance only) Notes 1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications.
4 Leg height restrictions may apply.
5 M1 double only available using 3 heavy-duty legs.

Defender III
Description Rescroft’s flagship product, Defender III, was launched at the end of 2002 and continues the Defender tradition of stylish, comfortable, ultra-safe M1/M2/M3 passenger seating. Descended from Defender I (the first commercially viable M2 seat to reach the UK minibus market) and Titan, this latest version remains the most popular semi-high back choice for most bodybuilders and vehicle operators. For M2 and M3 applications, the seat is available as single, double and treble units: for M1 applications, as singles and doubles. Features • Minimised seat pitch measurement
• Compliant on Embus floor system details »
• Standard lap/diagonal, height adjustable, inertia reel belt - fully integrated
• Compliant on various quick-release fittings
• Variable leg centres
• Full range of accessories
• Compliant to Community Directive 76/115/EEC (as amended) for category M1, M2 and M3 applications
• Textured paint finish
• Choice of leg rake
• Choice of belt types (including Body Loc)
• Optional ABS back
• Optional flexible seat belt buckle
• Optional twin-belt, retractable harness
system, with height adjustment
• Optional coloured webbing on specificseat belts
• Optional ISOfix connection details » Accessories • Armrests
• Quick-release fittings
• Headrests (adjustable)
• Grab handles
• ABS
• ISOfix Trim
To match original material in most vehicles. Vinyls and moquettes also available. Bases
All seats are supplied with legs.(height and quantity according to application). Braced bases are available for use with quick-release fittings. Belts
A lap/diagonal height adjustable belt is fitted to each unit supplied. Optional coloured webbing on special seat belts. Dimensions (for guidance only) Notes 1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications.
4 Leg height restrictions may apply.
5 M1 double only available using 3 heavy-duty legs.

Plica
Description For vehicle operators, lifting removable, M1 seating into, and out of, vehicles is strenuous and time-consuming. The Plica folding seat is designed to assist in both areas by providing a fold-away facility that eliminates the need to remove the seat at all.Compact and realistically priced, the Plica can be fitted along the full length of the vehicle, simply folding against the side when not in use providing maximum aisle width for wheelchair users. Passengers are seated facing forwards and the seat has been tested and approved to M1 standards. Features • M1 tested seat belt anchorages
• Forward facing when seated
• Fitted with inertia reel lap and diagonal
seat belt
• 200mm deep when folded
• Compliant on Embus floor system details »
• Compliant to Community Directive
76/115/EEC (as amended) for category M1,
M2 and M3 applications General
Available in different heights to suit most vehicles. Please specify vehicle model when ordering. Supplied in single form for both left and right hand applications. Accessories • Aisle-side arm rest
• Headrests (adjustable and removable) Trim
To match original material in most vehicles. Vinyls and moquettes also available. Notes 1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications.
4 Leg height restrictions may apply.
5 M1 double only available using 3 heavy-duty legs.

Defender Access
Description In 1998, an amendment to UK regulations required that rear-facing seating should be tested to the minimum loading for M3 category vehicles. Defender Access has, in fact, been tested, forward-facing, to the M2 loading. This enables vehicle builders to fit this seat, rear-facing, into any M-category vehicle, or forward-facing into M2 and M3 vehicles. Features • Fold-up cushion
• Tested and approved for M2
category vehicles
• Fully integrated seat belt reels
• Height adjustable belts as standard
• Single available in three widths
(400, 425 and 450mm)
• Double - 800mm contoured one-piece
cushion and squab
• 330mm fixing hole centres
• Compliant on Embus floor system details »
• Compliant to Community Directive
76/115/EEC (as amended) for category
M2 and M3 applications (M1 if installed
rear-facing) Accessories • Armrests
• Headrests (adjustable)
• Quick-release fittings. Trim
To match original material in most vehicles. Vinyls and moquettes also available. Bases
Suitable for use with quickrelease fittings. Belts
Lap/diagonal inertia reel belts are fitted as standard. Height adjustable belts are available. Dimensions (for guidance only) Notes 1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications.

Defender III Accent
Description In 1998, an amendment to UK regulations introduced the requirement for rear-facing seating to be tested to the minimum loading for M3 category vehicles. The Defender III Accent has achieved this standard and has been designed to exactly complement Rescroft’s range of fixed-cushion Defender seating. When installed rear-facing, this product is suitable for use in M1 category vehicles. Features • Fold-up cushion
• Tested and approved for M3 category vehicles
(single-leg version) or M2 (two-leg version)
• Fully integrated seat belt reels
• Height adjustable lap/diagonal inertia-reel
belts as standard
• Available in three widths (400, 425, 450mm)
• 330mm fixing hole centres
• Leg centres (front to back) to suit
quick-release fittings
• Compliant on Embus floor system details »
• Compliant to Community Directive 76/115/EEC
(as amended) Accessories • Armrests
• Quick-release fittings
• Adjustable headrests Trim
To match original material in most vehicles. Vinyls and moquettes also available.
Notes 1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications.
Uplift Description The Uplift tip-up seat provides high specification, compact seating for applications where it is essential to minimise the overall depth of the seat backrest. It is available in two widths and a variety of trim styles and will, optionally, accept headrests and twin belts. Features • Fold-up cushion
• Suitable for M1 vehicles when installed
rear-facing
• Available as 400 and 450mm single units
• Gas-strut-assisted folding mechanism
• Standard lap/diagonal inertia-reel 3-point belt
• Textured paint finish
• Designed for bulkhead fixing
Accessories • Armrests (see Note 4)
• Headrests Trim
To match original material in most vehicles. Vinyls and moquettes also available. Notes 1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications.
4 Armrests only available in conjunction with webbing seat-belt stalk.

R2180
Description The R2180 tip-up seat provides low cost, compact, occasional seating. Installed rear-facing, it is available in a variety of forms and will, optionally, accept armrests and static lap-belts.

R2195 schoolbus seat
Description By minimising seat width and pitch, the R2195 schoolbus seat enables vehicle builders and operators to maximise forward-facing seating capacity whilst providing every passenger with an integral, 3-point, height-adjustable safety belt. Features • Available in two widths (300, 340mm)
• Available as singles, doubles or trebles
• Standard lap/diagonal, height adjustable,
inertia-reel belt - fully integrated
• Variable leg heights and centres
• Minimised seat pitch measurement
• Suitable for use with various
quick-release fittings
• Seat belt anchorages meet the
load requirements for category M3 vehicles
• Textured paint finish
Accessories • Flexible seat belt buckle
• Folding armrest
• Adjustable headrest Trim
To match original material in most vehicles. Vinyls and moquettes also available. Notes 1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications.

Alto
Description The Alto semi-high back offers straight- forward, low cost, comfortable seating for vehicle conversions where the legal requirement for lap and diagonal seat belts does not apply. The expected range of seat widths, leg heights and accessories is available. Mezzo is stylish and lightweight and is supplied with a two year warranty. Features • Available with retractor or static lap-belts
• Available as singles, doubles or trebles
• Available in three widths (400, 425, 450mm)
• Variable leg centres
• Compliant to Community Directive
76/115/EEC (as amended)
• Black paint finish
• Full range of accessories
• Removable cushion
Accessories • Armrests
• Headrests (adjustable)
• Quick-release fittings
• Corner grab-handle
• Rear grab-handle Trim
To match original material in most vehicles. Vinyls and moquettes also available. Bases
All seats are supplied with legs (height and quantity according to application) Belts
Static or retractor lap belts can be fitted to in-built anchorage points. Lap belt anchorage points comply with76/115/EEC (as amended) for category M2 and M3 vehicles.
Note: Lap/diagonal belts are NOT available on this product.(see Defender range) Dimensions (for guidance only) Notes 1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications.

Mezzo
Description The Mezzo semi-high back offers straight- forward, low cost, comfortable seating for vehicle conversions where the legal requirement for lap and diagonal seat belts does not apply. The expected range of seat widths, leg heights and accessories is available. Mezzo is stylish and lightweight and is supplied with a two year warranty. Features • Available with retractor or static lap-belts
• Available as singles, doubles or trebles
• Available in three widths (400, 425, 450mm)
• Variable leg centres
• Compliant to Community Directive
76/115/EEC (as amended)
• Black paint finish
• Full range of accessories
• Removable cushion
Accessories • Armrests
• Headrests (adjustable)
• Quick-release fittings
• Corner grab-handle
• Rear grab-handle Trim
To match original material in most vehicles. Vinyls and moquettes also available. Bases
All seats are supplied with legs (height and quantity according to application) Belts
Static or retractor lap belts can be fitted to in-built anchorage points. Lap belt anchorage points comply with76/115/EEC (as amended) for category M2 and M3 vehicles.
Note: Lap/diagonal belts are NOT available on this product.(see Defender range) Notes 1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications. R2118 Description The R2118 standard back offers, low cost, utility seating for vehicle conversions where the legal requirement for lap and diagonal seat belts does not apply. A range of seat widths, leg heights
and accessories is available. Features • Available with retractor or static lap-belts
• Available as singles, doubles or trebles
• Available in three widths (400, 425, 450mm)
• Variable leg heights and centres
• Lap belts compliant to Community Directive
76/115/EEC (as amended)
• Static or retractor lap belts can be fitted to
inbuilt anchorage points.
Lap belt anchorage points comply
with76/115/EEC (as amended) for category M2
and M3 vehicles.
NB: Lap/diagonal belts are NOT available on
this product (see Defender range)
Accessories • Armrests
• Headrests
• Quick-release fittings Trim
To match original material in most vehicles. Vinyls and moquettes also available.
Dimensions (for guidance only)
Notes 1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications.

Swivel Base
Features • Lap/diagonal inertia-reel belt
• Compliant to Community Directive
76/115/EEC (as amended) for category M1,
M2 and M3 applications
• Four locking positions - 90° increments
• Quick-release lever
• Available on 270mm and 320mm standard-rake bases
Notes 1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications.

Winga
Features Available in two formats, Winga will match the appearance of Rescroft’s semi- high back Defender and high-back Nevis. It will be available with an ISOfix option and will accept a range of accessories, including twin armrests. When folded, it will not occupy more front-to-back space than when in use, even if the seat is a high-back or has a headrest. It will be Embus compliant. Notes 1 Caution: It is not possible to test every permutation of seat width, accessory combination, leg height, position and type, or seat belt requirement. For this reason, it must be emphasised that compliance cannot be assumed where there is any deviation from the standard supply or assembly method. Additionally, the advantages of this product may be lost if insufficient consideration is given to the method of installation of the seat in the vehicle.
2 FULL compliance to seat belt anchorage regulations can only be achieved through vehicle testing.
3 Product improvement may affect specifications.

Embus
floor fixing system Description Embus is a cost effective and practical floor conversion system that gives installers and operators a guarantee that seat belt anchorages will comply with current and predicted future legislation.(2) Because the system has been fully tested by Rescroft, there is no requirement for installers to carry out their own, independent, testing. Validated at TÜV in Germany and developed with the full involvement of the UK Vehicle Certification Agency (VCA) and the Dutch Road Council, Embus can be installed and certified throughout much of Europe and beyond. Features • For M1, M2 and M3 category vehicles
• Guarantees that seat belt anchorages
comply with EU regulations(2)
• Eliminates the need for installers
to carry out testing
• For use in Britain and Europe, and
anywhere that requires European standards
• Cost effective and maintenance free
• Easy installation
• Supplied with certification

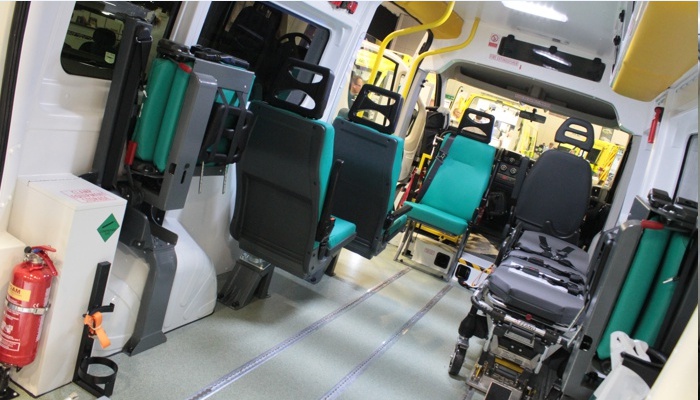

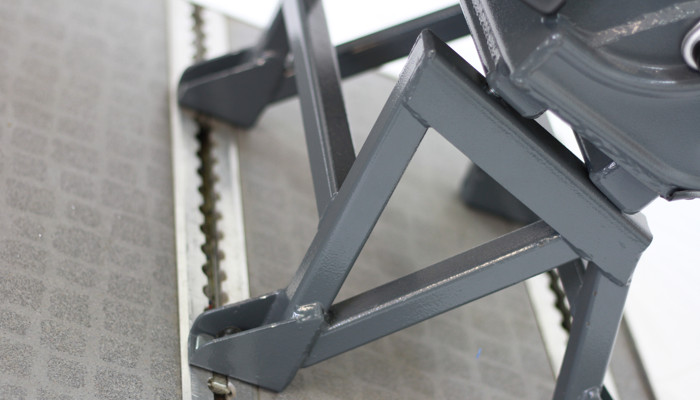

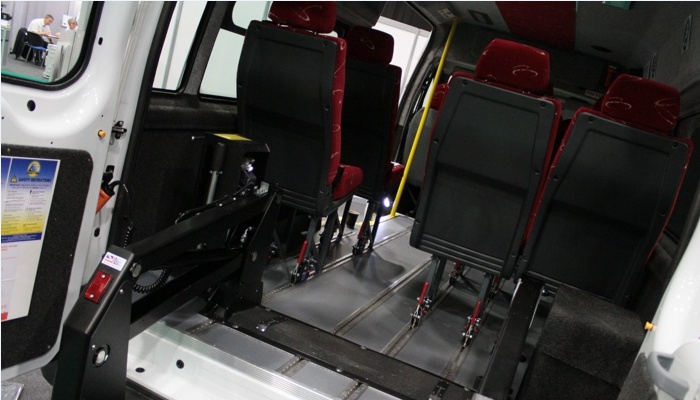

Kit Embus is a complete system comprising seats, lockable quick-release floor fixings, fixed seat retainers, floor rails, installation manual and certification. Designed primarily for those vehicles most frequently converted into minibuses, wheelchair accessible vehicles and PTS ambulances, the system also has applications in frontline emergency vehicles with regard to CEN seat fixing regulations. The Embus system enables fixed, removable and folding seats to be installed in a variety of popular configurations within the vehicle. More vehicles and more seating positions are being added. Please contact Rescroft for information on specific requirements. Notes 1 Product improvement may affect specifications
2 Compliance can only be guaranteed when the system is installed in strict accordance with the installation manual

ISOFIx

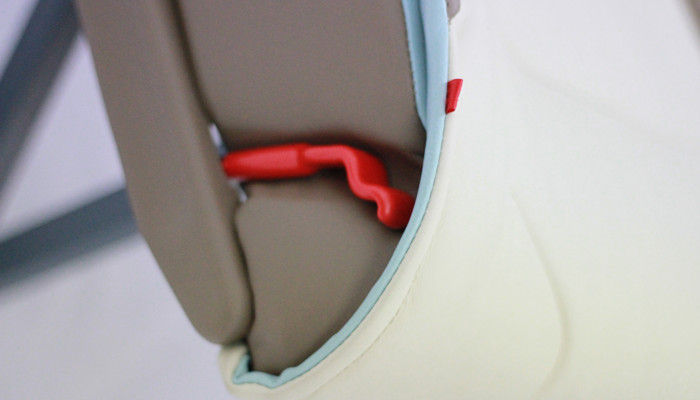

international standardised fitting system for child child seat installation Description ISOfix has been adopted by OE manufacturers worldwide and Rescroft can now offer this proven car safety system to the multi-passenger vehicle market. The main benefit of ISOfix is that the system, via its locking bar, creates a rigid link between the child seat and the vehicle. It eliminates the risk of slack installation, which is one of the key areas of misuse with child seats that rely on the use of adult seat belts. Features • Standardised fixing for simple installation
and removal - one quick movement releases the
child seat leaving the vehicle seat ready for normal use.
• Removes the risk of slack installation with
conventional adult seat belts.
• Available as an option for Defender III and
Nevis seat ranges.
• Can be used in conjunction with the Britax
Duo ISOfix child seat.
• MIRA tested to static regulation ISO 13216-1
and dynamically tested to permissible
conditions of ECE R44-03 Specific
Vehicle Approval.
• Ideal for ambulances, community vehicles,
mini-buses, etc.
Notes 1 Product improvement may affect specifications.

Escutcheon
'All-Ages' Belt Escutcheon

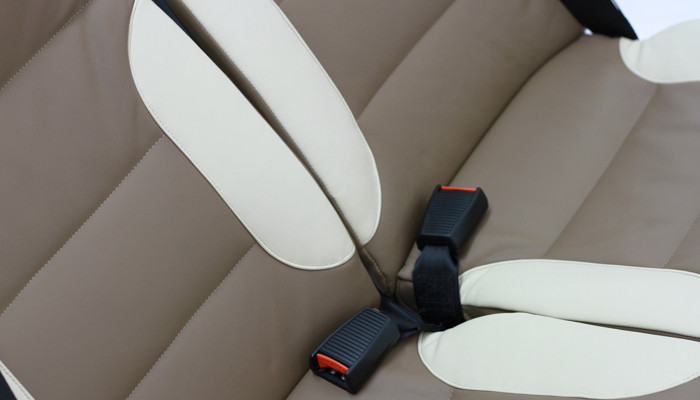

In order to feed seat-belts over the shoulder at the correct height on high-back, stand-alone seating, the belt tongue and webbing usually emerge from the front, rather than the top, of the backrest. When not in use, the belt tongue rests on the front of the backrest and can sometimes be felt behind the shoulder. To overcome this problem, Rescroft have developed a completely new escutcheon that allows the belt tongue to fully retract into the depth of the backrest.
The new escutcheon is subject to a patent application and is scheduled to be available from January 2007.

Contact us
If you would like further information or you would like us to call you to discuss a project please complete and send the form below. Fileds marked with * are mandatory
RESCROFT LTD. 20 Oxleasow Road,
East Moons Moat,
REDDITCH,
Worcestershire,
B98 0RE
United Kingdom Tel: +44 (0) 1527 521300
Fax: +44 (0) 1527 521301 @: enquiries@rescroft.com

Link to us
If you would like to link to us from your web site, please use the graphics and text below.
To use one of the images or the hyperlink below just copy the HTML code below onto your page.
We offer 2 ways for web publishers to integrate the Rescroft.com logo or link into their web sites: Image (195x60px)
Designers & Manufacturers of Passenger Vehicle Seating
www.RESCROFT.com
We always like to hear who has linked to us. Please send us an email at marketing@rescroft.com with your name and web page address to let us know!
If you have any questions about linking to Rescroft.com, the use of the Rescroft logo, or desire more information or promotional materials on Rescroft.com, please use the Contact Us page. Ambulance Seat, Ambulance Seating, Minibus Converter, Minibus Converters, Minibus Seat, Minibus Seating, Plica, Police Seat, Police Seating, schoolbus, seats Test, Tip-up Taxi Seat, Vehicle Seat, Vehicle Seating, wheelchair accessible
Tas Janos Tas János Tas, bexmon
